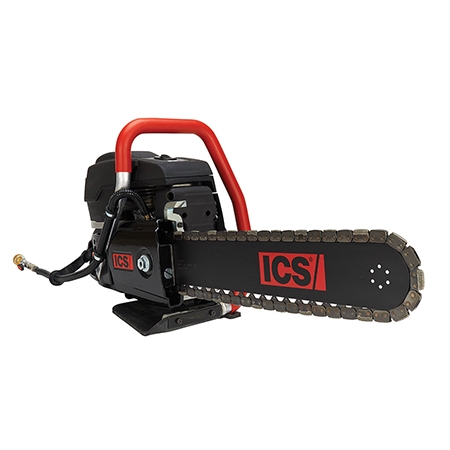

Deepest, Most Versatile Gas Power Cutter
The new 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.
Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas power cutter for frequent-use by general construction, utility contractors, and concrete professionals.
Available with 12 in. (30 cm), 16 in. (40cm) guide bars and the entire line of FORCE3, FORCE4, and PowerGrit Series diamond chains.
WARNING:
This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
- Engine Type: 2-Stroke, Air Cooled
- Displacement: 94cc (5.7 cu-in)
- Horsepower: 4.8kW (6.4 hp) @ 9000 rpm
- Torque: 5.7 Nm (50.4 in-lbs) @ 7200 rpm
- Engine Speed: 9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
- Chain Speed at Maximum Power: 28 m/s (5500 ft /min)
- Weight: 9.5 kg (21 lbs) powerhead only
- Dimensions: 46 cm (18") L x 36 cm (14") H x 30 cm (12") W
- Starter: Recoil, dust, and water resistant
- Ignition: Special water resistant electronic ignition
- Fuel Ratio: 2% (50:1) gasoline-to-oil
- Fuel Capacity: 1 liter (0.26 gallon)
- Water Supply Requirement Minimum: 1.5 bar (20 psi)
- Water Flow Requirement Minimum: 4 lpm (1 gpm)
- Guaranteed Sound Power Level, Lwa: (1) 115 dB(A); (Kwa=1.0 dB(A))
- Equivalent Sound Pressure at the Operator's Ear Lwa: 104.6 dB(A) (K=1.0 dB(A))
- Vibration, ahv eq Concrete Cutting (2): 3.6 m/s2 (K=1.0 m/s2) Front Handle/3.1 m/s2 (K=1.0 m/s2) Rear Handle
- Vibration, ahv eq Pipe Cutting (2): 5.62 m/s (K=0.2 m/s2) Front Handle/5.28 m/s2 (K=0.2 m/s2) Rear Handle
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Use on concrete, stone, masonry, ductile iron pipe, cast iron pipe, and more
- Most versatile gas-power cutter
- New piston and cylinder lowers engine temperature
- Longer life muffler with reinforced internal baffle
- Easy-to-start with higher energy ignition system
- New easy-to-tune carburetor
|
|
|
|
|
|
|
